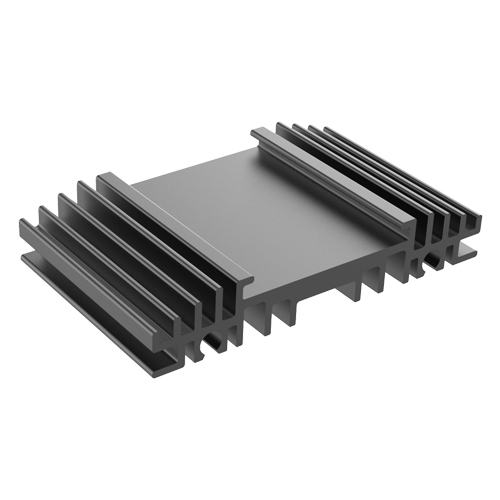

| Part Number | RX580-209-00 |
|---|---|
| Length | Desired Length |
| Surface | A1 Degreased / A4: Anodize |
| Width (mm) | 40.6 |
| Height (mm) | 7.4 |
| Semiconductor mounting | TO 220/235 |
| Purchase Extruded Profile length | 1000 ~ 3500 mm |
| General surface | raw degreased aluminium (by the metre raw aluminium) |
| Weight (kg) | 0.31 kg/meter |

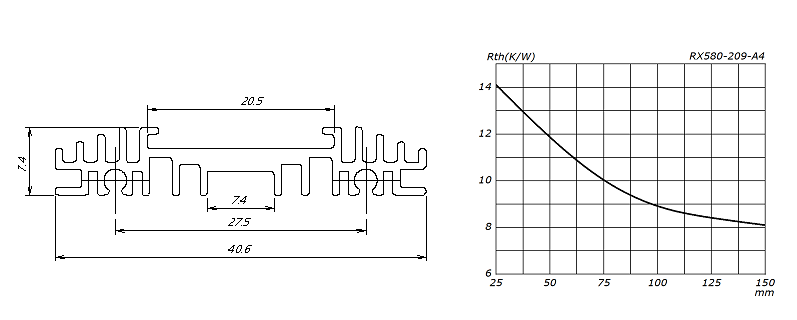

Download Drawing format (such as PDF, CAD)
