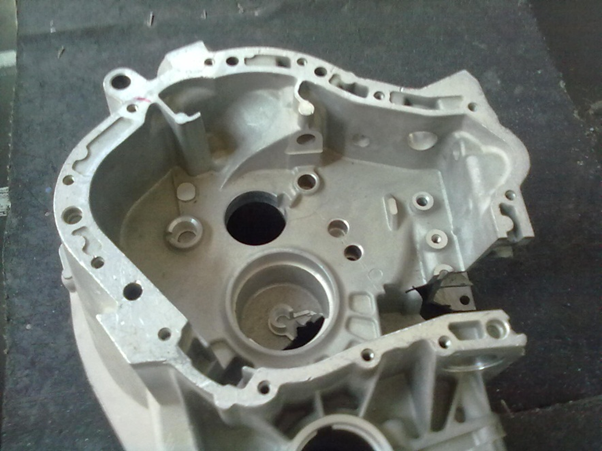

Die casting is one of the fastest-growing special casting technologies in modern metal manufacturing and is considered a near-net-shape production process with minimal machining requirements. The process involves injecting molten metal into a mold cavity under high pressure and high speed, where the material rapidly solidifies and crystallizes under pressure to form the final casting component.
High pressure and high injection speed are the primary characteristics of die casting. Typical injection pressures range from several tens of megapascals, while filling speeds are generally between: 16 ~ 80 m/s , the molten fills the mold cavity within an extremely
short time period typically : 0.01 ~ 0.2 /seconds

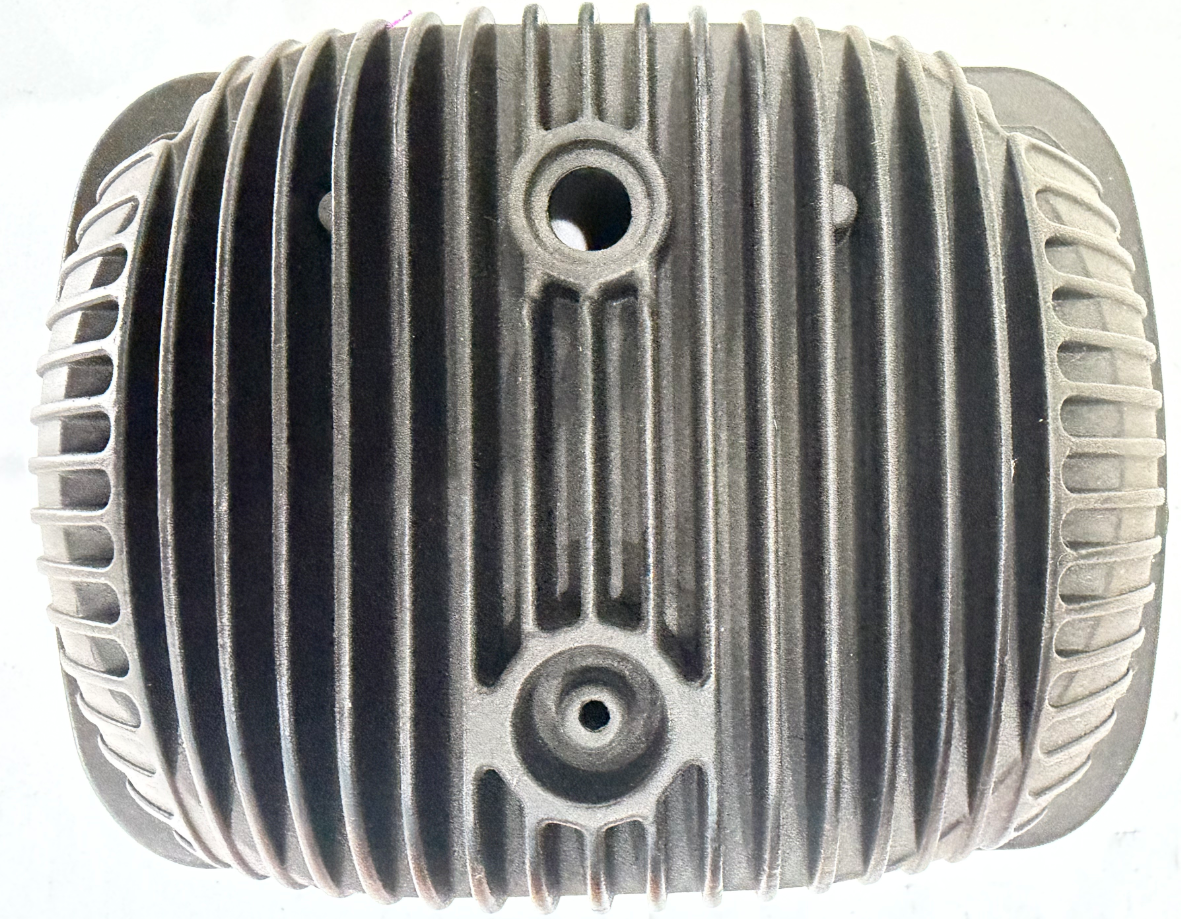

Products manufactured using this process offer several significant advantages, including:

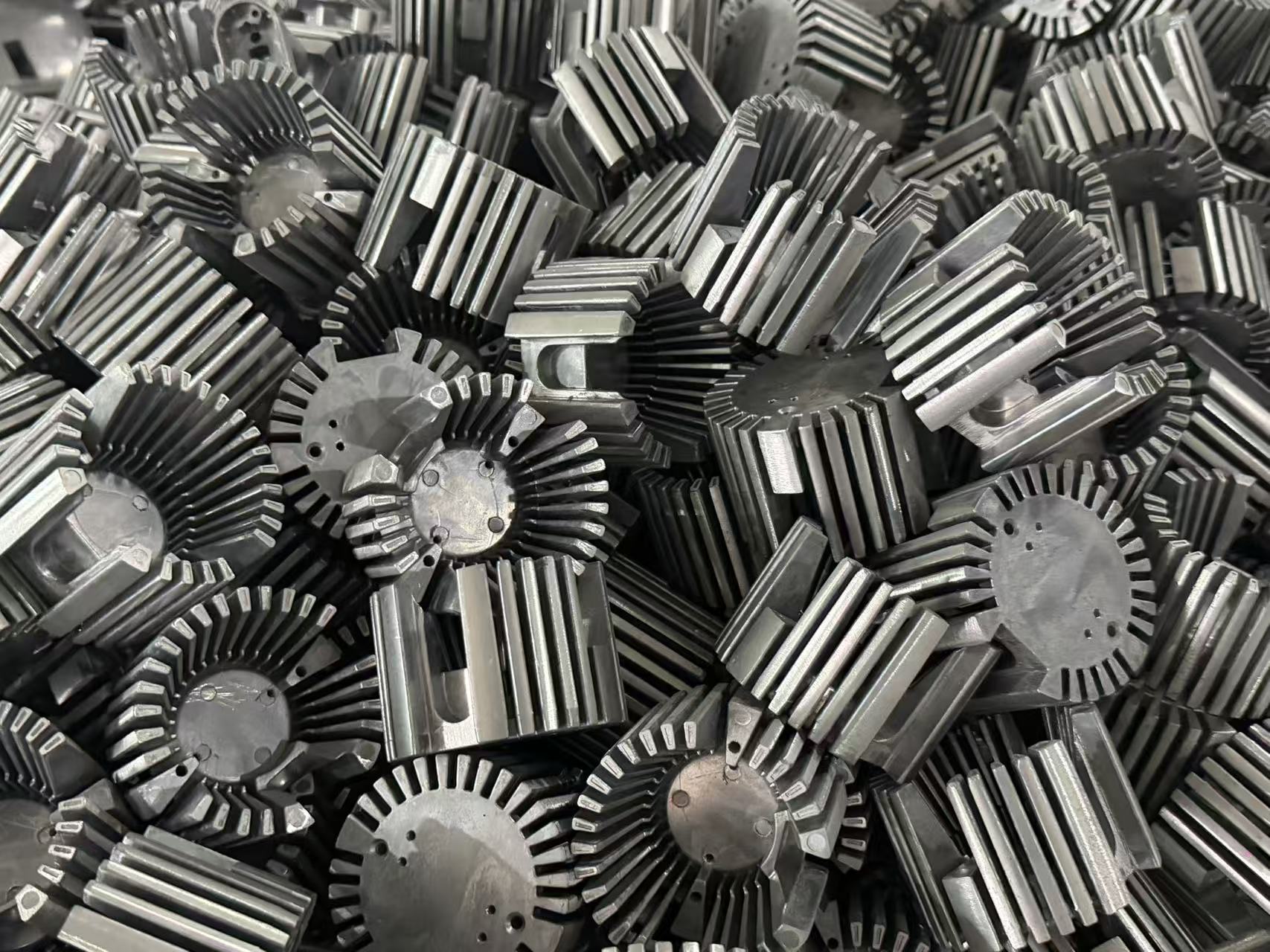

Due to these advantages, die casting is highly suitable for high-volume production applications
Renxin Thermal Products utilizes advanced hot-chamber die casting technology for manufacturing high-performance diecast heatsinks. This process relies on a molten metal reservoir that continuously feeds the die cavity.

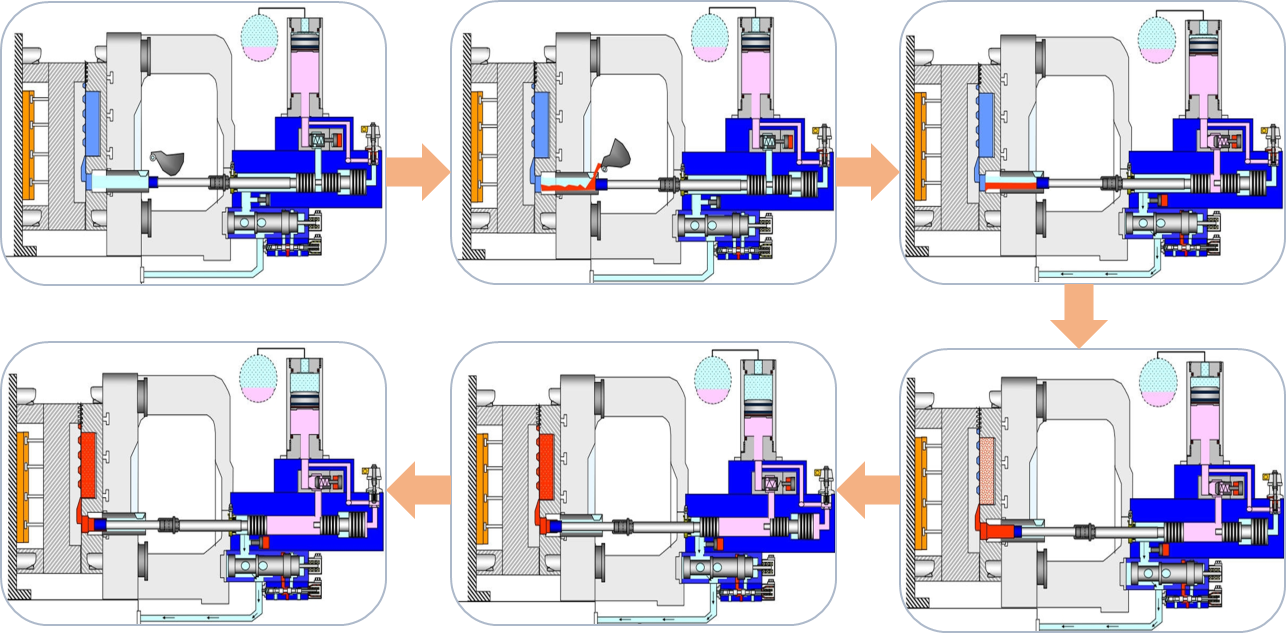

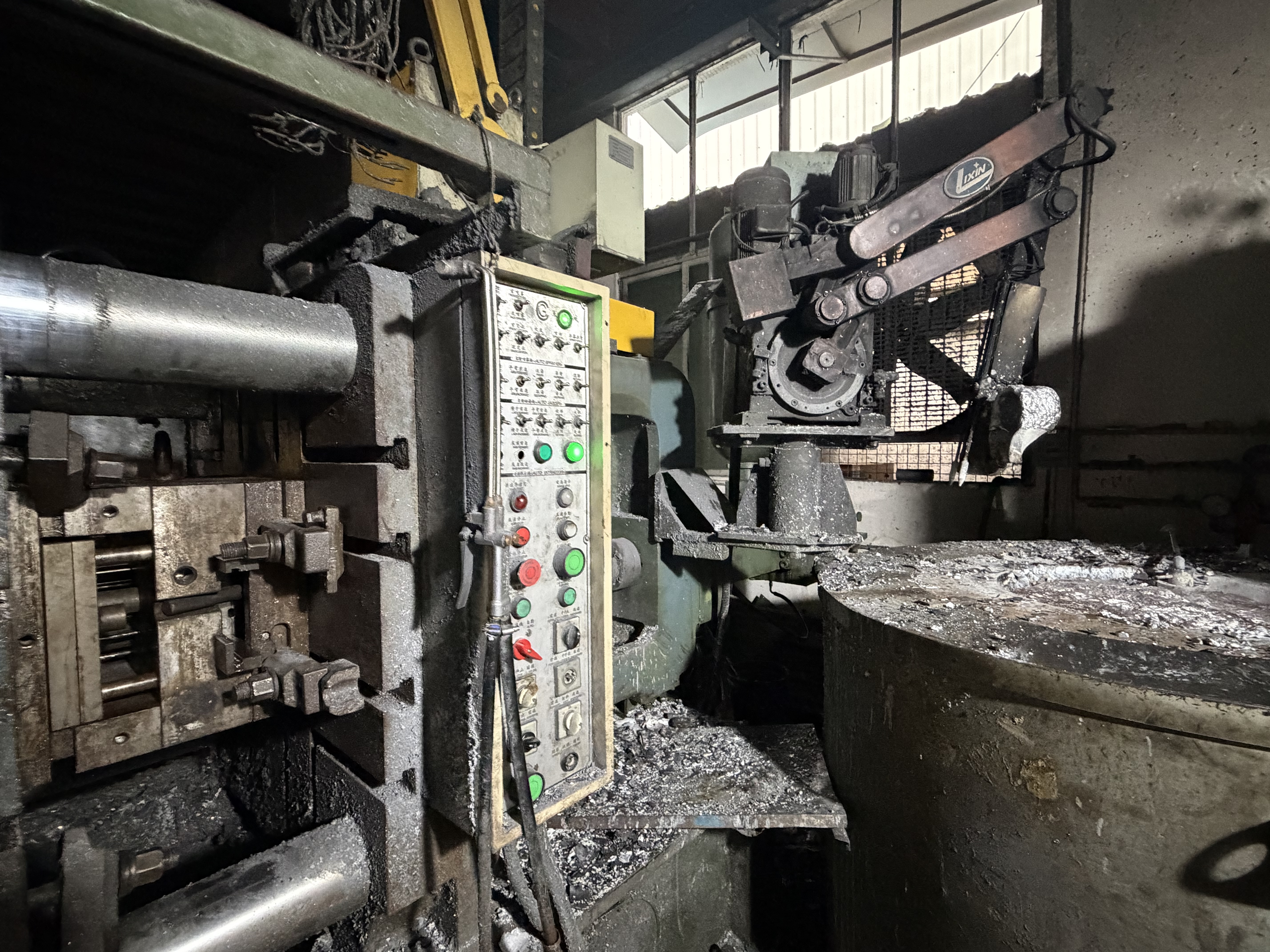

A pneumatic or hydraulic piston injects molten metal into the die under high pressure. One of the major advantages of this system is its extremely fast production cycle time, typically:approximately 15 cycles pre minunt ,

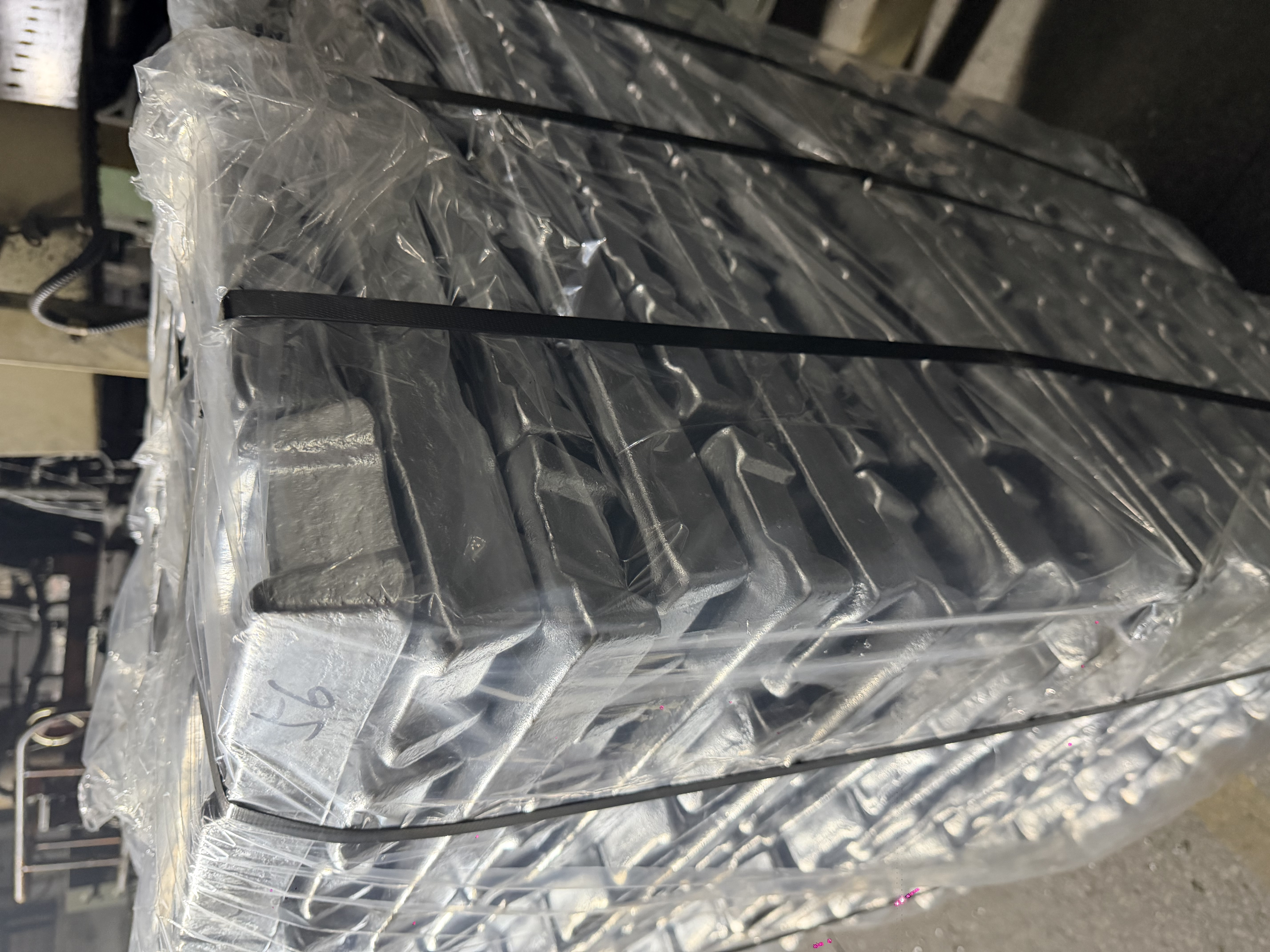

Renxin diecast heatsinks are primarily manufactured using aluminum-based alloys including:

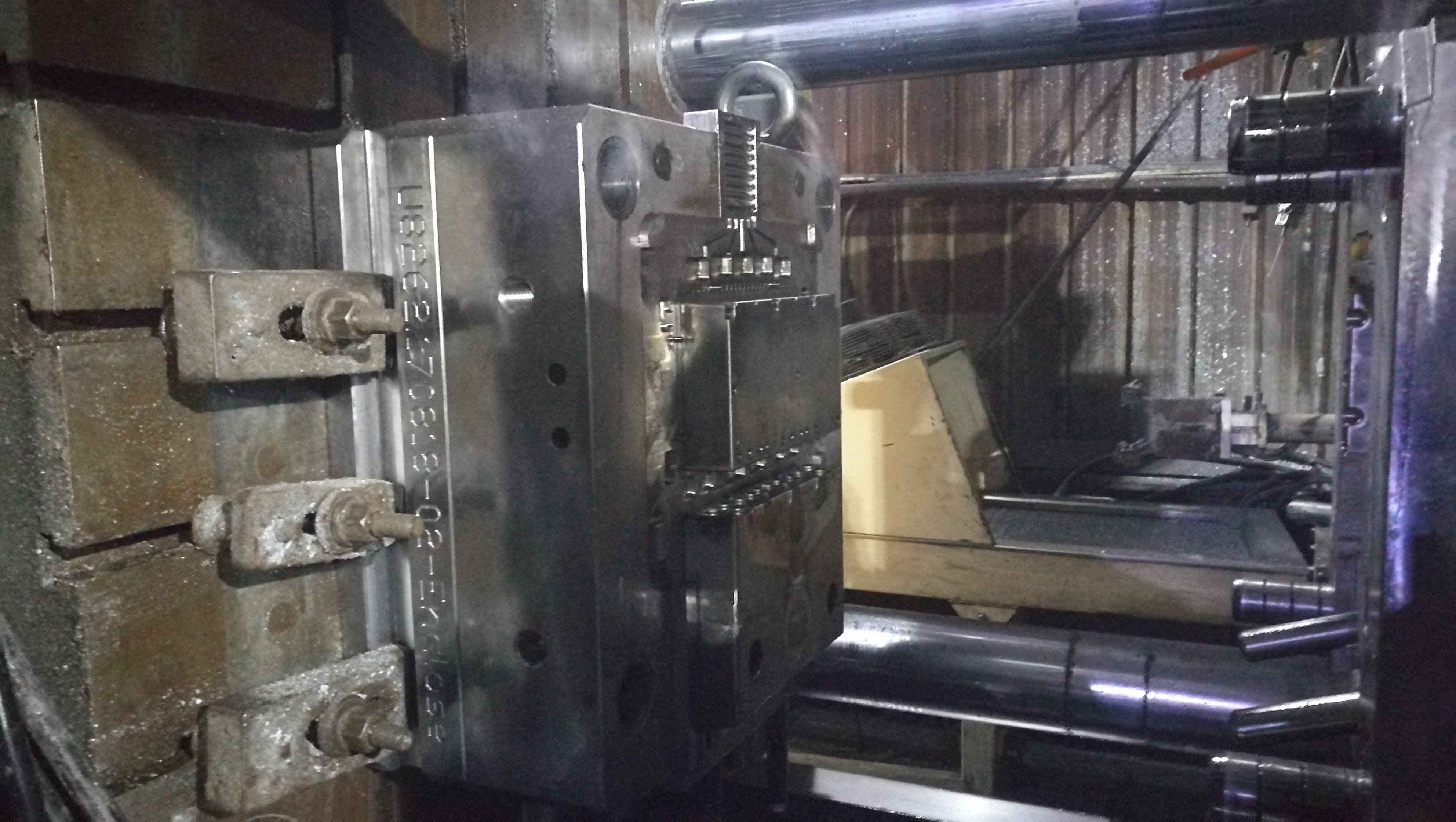

The die casting process requires two die halves:
A parting line is formed where the two die halves meet.

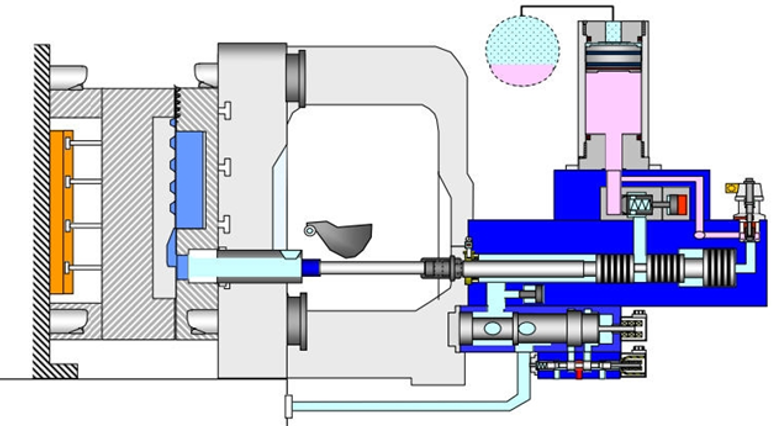

The mold is designed so that the finished casting separates from the cover die half and remains in the ejector die half when the mold opens. The ejector die half contains ejector pins that push the casting out of the mold cavity.
To prevent damage to the casting, an ejector pin plate simultaneously drives all ejector pins with equal force and synchronized movement. After ejection, the ejector system retracts automatically to prepare for the next production cycle.
The following material characteristics help explain the balance between casting performance, mechanical strength, and thermal conductivity in diecast heatsink applications.
| Material | CNS # | JIS (H5302) | AA/ASTM(1984) | DIN 1725 (1986) |
|---|---|---|---|---|
| AI - Si | 1 | ADC - 1 | A413 | GD - Al Si 12 (Cu) |
| Al - Si - Mg | 3 | ADC - 3 | A360.0 | GD - Al Si 10 Mg |
| Al - Mg | 5 | ADC - 5 | 518.0 | GD - Al Si Mg 9 |
| Al - Mg | 6 | ADC - 6 | 515.0 | --------- |
| Al - Si - Cu | 10 | ADC - 10 | B 380.0 | GD - Al Si 9 Cu 3 |
| Al - Si - Cu | 10 | ADC - 10 Z | A 380.0 | GD - Al Si 9 Cu 3 |
| Al - Si - Cu | 12 | ADC - 12 | 383.0 | ------- |
| Al - Si - Cu | 12 | ADC - 12Z | 383.0 | -------- |
| Al - Si - Cu | 14 | ADC - 14 | B390.0 | ------ |

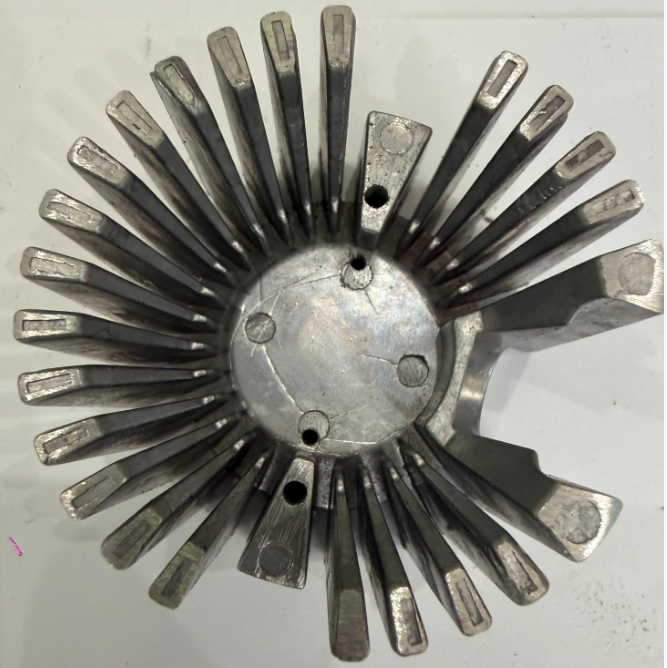

Excess material such as:
can be removed through secondary machining operations.
Manufacturing cost can be significantly reduced when:
are considered during the early design stage.
Multi-slide die casting machines can support highly complex geometries, although they may increase tooling and manufacturing cost.
Renxin Thermal Products also provides rapid prototyping solutions for diecast heatsinks using the same alloy material without requiring hard tooling, allowing further design optimization before final mold production.
The standard Renxin die casting process typically includes:

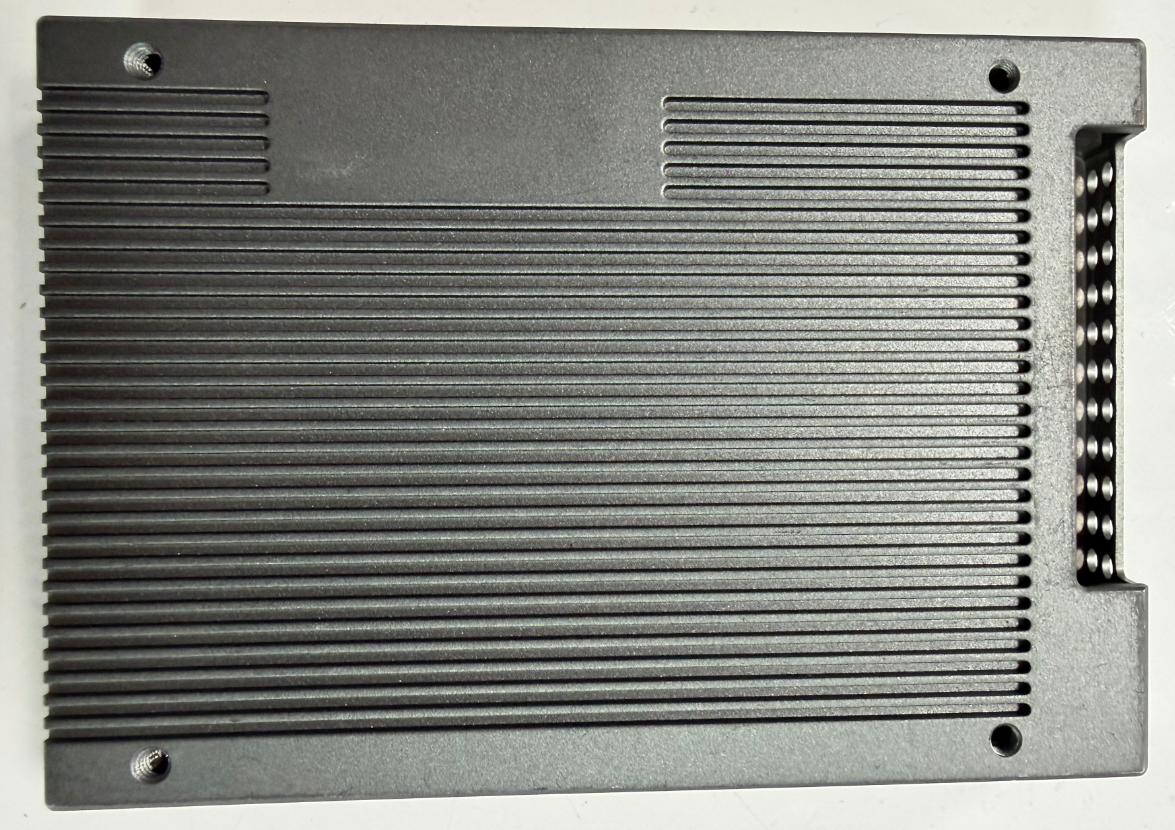

Using high-purity aluminum alloys enables the production of diecast heatsinks with excellent thermal dissipation capability for electronic applications.
Because aluminum can be difficult to cast, additional alloying elements are often introduced to improve casting flowability. However, these impurities can reduce thermal conductivity and negatively impact thermal performance.
Most die casting manufacturers commonly use:
because it provides improved structural strength and casting performance.
Renxin Thermal Products utilizes:
for high-performance diecast heatsinks because it offers significantly improved thermal conductivity, with thermal properties comparable to extruded or machined aluminum heatsinks: 160 ~ 200 W/m.K
Diecast heatsinks are ideal for:
Although die casting requires an initial Non-Recurring Engineering (NRE) investment for tooling development, production cost becomes highly competitive at larger production volumes.
Typically, at production volumes around: 5,000 Pieces
the tooling investment can be offset through lower part cost.
Once tooling is completed, die casting offers:
Another major advantage of die casting is its ability to produce:
that may be difficult or expensive to manufacture using other processes.
By producing components close to the final product shape (Near-Net Shape), die casting can significantly reduce or even eliminate secondary CNC machining operations, further reducing manufacturing cost and production time.
Diecast applicationsDiecast heatsinks are widely used in:
With advanced die casting capability, thermal engineering expertise, and precision manufacturing technology, Renxin Thermal Products provides reliable and cost-effective diecast heatsink solutions for high-volume thermal management applications.
Share your diecast heatsink dimensions, material requirement, thermal load, production volume, surface finishing, and application requirements. Our engineering team can support customized diecast heatsink solutions from prototype validation to high-volume production.
