| Part Number | RX580-033-00 |
|---|---|
| Length | Desired Length |
| Surface | A1 Degreased / A4: Anodize |
| Width (mm) | 50 |
| Height (mm) | 22 |
| Semiconductor mounting | TO 218/ TO 220/TO 247/ TO 248 |
| Purchase Extruded Profile length | 1000 ~ 3500 mm |
| General surface | raw degreased aluminium (by the metre raw aluminium) |
| Weight (kg) | 0.78 kg/meter |

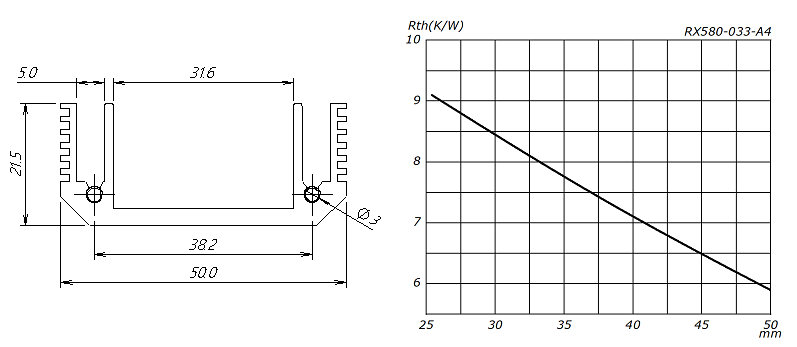

Download Drawing format (such as PDF, CAD)
