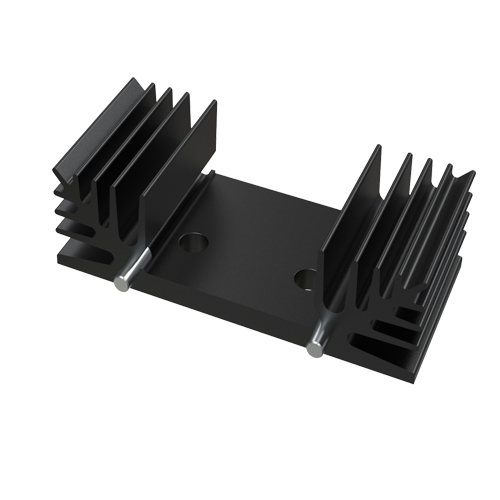

| Part Number | RX580-010-00 |
|---|---|
| Length | Desired Length |
| Surface | A1 Degreased / A4: Anodize |
| Width (mm) | 41.9 |
| Height (mm) | 25.4 |
| Semiconductor mounting | SOT 32/ TO 220/ TO 3 P |
| Purchase Extruded Profile length | 1000 ~ 3500 mm |
| General surface | raw degreased aluminium (by the metre raw aluminium) |
| Weight (kg) | 1.22 kg/meter |
Download Drawing format (such as PDF, CAD)
