Overview PN: RX611-117-19
description: Copper T2 (99.97)% 3000K 200kw Busbar for DC_SWITCHGEAR
current(A): 270 A
Length: 100/120/160/200/260
Width: 20.0[0.79]
Thickness: 5.0[0.20]
Area mm² 100mm²
Weight 0.9 kg/meter
material Copper 1100 (T2) 99.9%
surfaces : Degreased or Ni/ Tin Plating
Thermal Conductivity 390 W/m-K
Specific Heat 390 J/kg-deg C
insulation layer PE Cover (General colour: Red / Yellow/ Black )
Insulation voltage 1000V
Operating Temperatures [-40ºC~115ºC]Drawing:
Special lengths and drillings on requestDetail Service Download Drawing format (such as PDF, CAD) Thank you for choosing to incorporate the busbar dc/ac power SWITCHGEAR series, If you need assistance, Renxin Thermal will support you with:
Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com

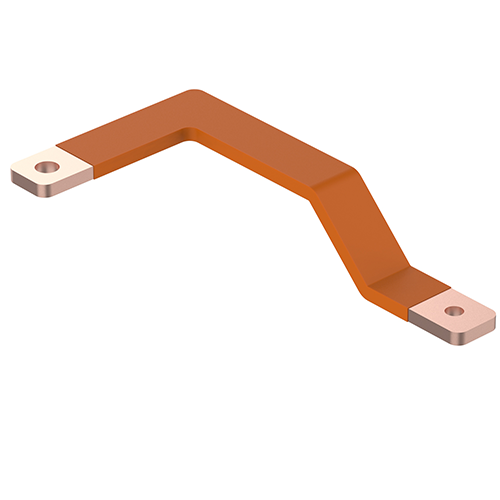

![RX611-117-19 DC Busbar Width 20[0.79] x Thickness 5[0.2]](http://ueeshop.ly200-cdn.com/u_file/UPAF/UPAF678/2209/products/27/1b18cb9f1e.png)
![RX611-117-19 DC Busbar Width 20[0.79] x Thickness 5[0.2]](http://ueeshop.ly200-cdn.com/u_file/UPAF/UPAF678/2209/products/27/1b18cb9f1e.png.240x240.png)

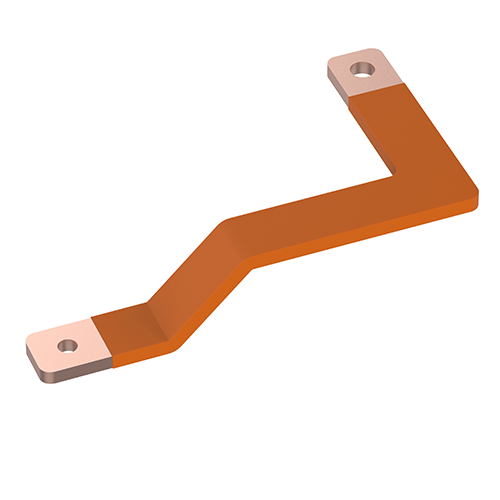

![RX611-117-19 DC Busbar Width 20[0.79] x Thickness 5[0.2]](http://ueeshop.ly200-cdn.com/u_file/UPAF/UPAF678/2209/products/27/6b71fa6c24.png.240x240.png)

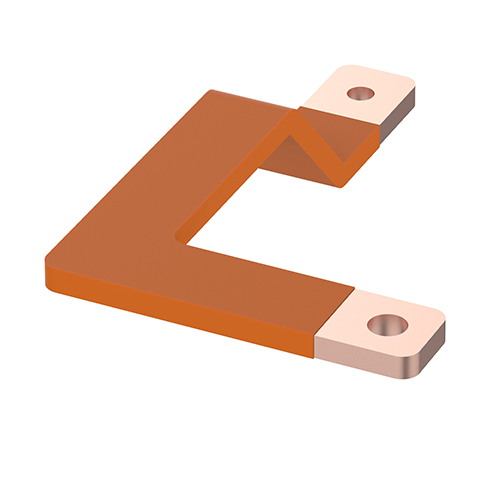

![RX611-117-19 DC Busbar Width 20[0.79] x Thickness 5[0.2]](http://ueeshop.ly200-cdn.com/u_file/UPAF/UPAF678/2209/products/27/51597db46b.png.240x240.png)

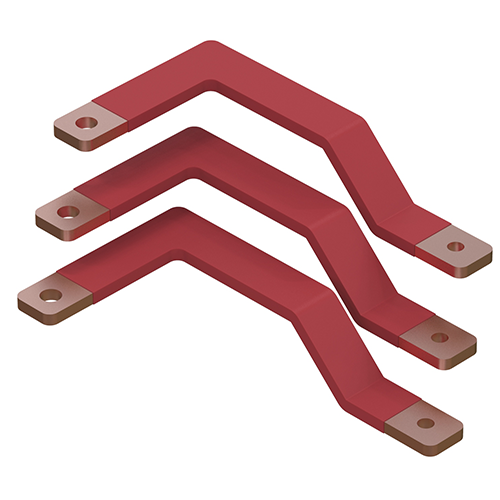

![RX611-117-19 DC Busbar Width 20[0.79] x Thickness 5[0.2]](http://ueeshop.ly200-cdn.com/u_file/UPAF/UPAF678/2209/products/27/d0dcf4ea55.png.240x240.png)
