Overview
PN RX614-001-19

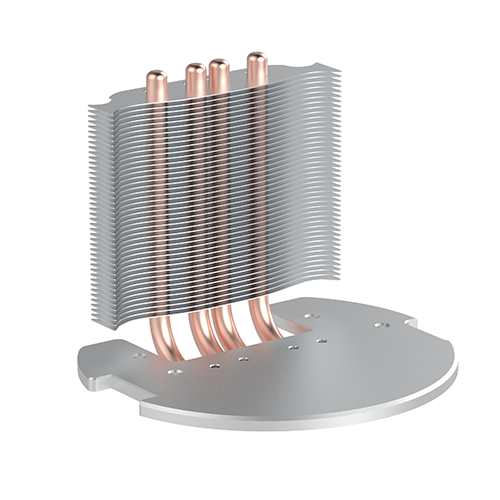

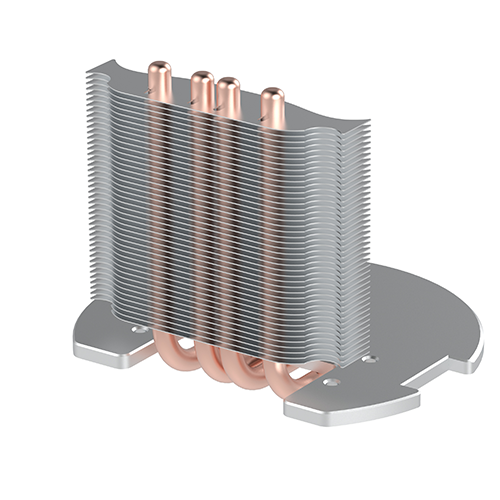

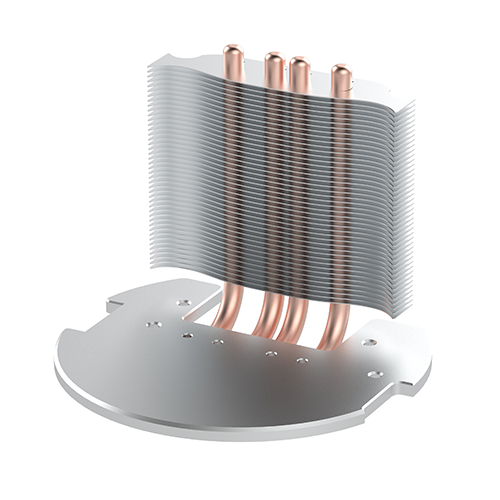

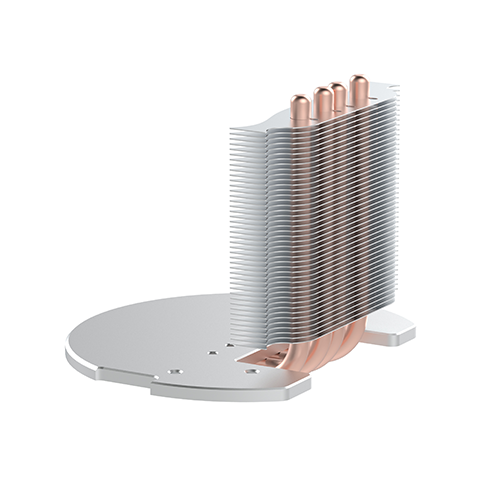

Description: 4 x Ф6.0 Heat pipe for 120W Provide Personalized Customized cooling system
Materual : Heat pipe copper T2/ Fin ：Aluminum 1050 /Base Aluminum 6061
Width: 80 [3.15]
Height : 90 [3.54]
Cooling : Forced
Fin Area mm² 96,609.1 mm²
Heat pipe Ф6.0 x 4 pieces
Surfaces : DEGREASED
Apply DC Fan 80x80
Qmax(W) 96 ~ 120 W
Starting temperature 28 C°
Rth[K/W] 0.067 K/W
Operating Temperatures [-25ºC~125ºC]Drawing: Gravity Vector and thermal preformance : The diameter of heat pipe, sources power and installation position of heat source have significant influence on the performance of heat pipe,
The following curve shows the variation of heat pipe heat dissipation performance in gravity vector
Thermal Performance of bending of heat pipes: Bending changes the path inside the heat pipe, and at the bending position, the flow of steam and fluid is blocked. The bending radius has great influence on the thermal performance of heat pipe.
The following is the recommended bending radius for different bending angles when designing.
Dia
Bending θ=45 °
Bending θ=90 °
Bending θ=135 °
Ф4
R = 8mm
R = 8mm
R = 10mm
Ф5
R = 8mm
R = 10mm
R = 12mm
Ф6
R = 10mm
R = 12mm
R = 14mm
Ф8
R = 16mm
R = 16mm
R = 18mm
